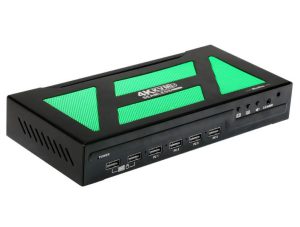

מערכת קופסת מיתוג KVM לשליטה מרחוק
HDMI 1.4
תואם HDCP 1.2
ממשק: HDMI, IR, RJ45, MICRO USB, USB2.0, RS232
רזולוצית וידאו: 4K*2K@30Hz
רזולוציה לפי טווח עבודה: 4K*2K עד 70 מטר , 1080P עד 100 מטר
קצב נתונים מרבי: 10.2Gbps
|
Video |
HDMI version, HDCP version |
HDMI 1.4, HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution |
UP to 4K*2K |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
IR |
Interface |
3.5mm earphone seat |
|
Signal type |
Digital |
|
|
Signal direction |
Bidirectional |
|
|
IR frequency |
20-56KHz |
|
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Bidirectional |
|
|
Baud rate |
Self-adaptive, Max 115200bps |
|
|
Data bits |
8 |
|
|
KVM |
Interface |
PC: MINI-USB Keyboard and mouse: USB-A |
|
Ethernet |
Interface |
RJ45 |
|
Transmission distance |
1080P: CAT6 up to 100m 4K*2K: CAT6 up to 70m |
|
|
Other |
Power supply |
The power adapter: DC 12V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
122*93*25mm |
|
|
The warranty |
6months warranty
|
|
Port name |
Description |
|
INPUT/OUTPUT |
HDMI signal input/output |
|
UTP |
Ethernet interface |
|
RS232 |
Serial port( G: Ground, T: transmit, R: receive ) |
|
PC IN |
Connect to PC |
|
K / M |
Connect to keyboard and mouse |
|
IR IN/OUT |
IR signal input/output |
|
DV 12V |
Power adapter socket |
|
LED indicator |
Description |
|
STATUS |
System status indicator |
|
POWER |
System power indicator
|
