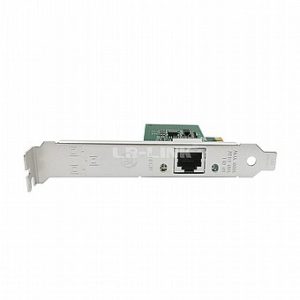

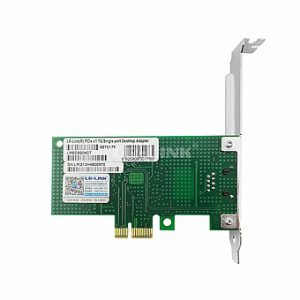

LREC9204CT is PCI Express x1 Gigabit Ethernet desktop network adapter based on Intel I210 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.
The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.
The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.
|
Controller |
Intel I210 |
| Transmission rate per port | 10/100/1000Mbps |
| Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m |
| 100BASE-Tx:Cat5/5e/6or higherup to 100m | |
| 10BASE-T: Cat3/4/5/5e/6or higherup to 100m | |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Network Virtualization | PXE |
| LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, |
| 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |
| Operating System Support | Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2 |
| Windows 7 / 8 / 8.1 / 10 | |
| Linux Stable Kernel version 2.6.x / 3.x / 4.x or later | |
| Linux SLES 10 / 11 or later | |
| VMvare ESX/ESXi 5.x/6.x or later |
