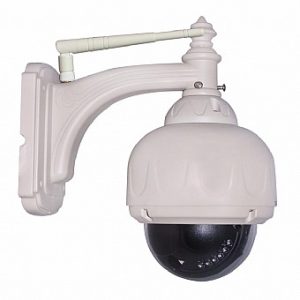

מצלמת אבטחה כיפה WANSCAM 1MP HW0028 PTZ IR
מצלמת רשת דיגיטלית
חיבורי תוכנה: P2P תמיכה QR CODE
עדשה: 2.8-12mm
ראיית לילה : יש ,15m
טכנולוגיה: CMOS HiSilicon 3518E 1/4
תוכנה : Smart Phone and PC
ניתן להגדיר אזורי גילוי מוגבל
ניתן להתחבר ב FTP לשרת קבצים חיצוני
תומך בדפדפנים Firefox, Safari, Google browser
גלאי תנועה: לאימייל
התחברות אלחוטית: Wi-Fi 802.11/b/g/n
דחיסת ווידאו : H.264 / MJPEG
חיבורי תוכנה: P2P תמיכה QR CODE
תקן התחברות ל NVR : ONVIF
תמיכה ב 12 שפות
תמיכה טלפונית בהתקנה הראשונית
| Model No: HW0028 | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518E | |
| P2P (Free) | No need to preset camera, Offer free P2P(HWAA-000xxx-xxxxx), Plug&play, Support QR code scanning to view | |
| Onvif Protocol | Support ONVIF 2.1 | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc. | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | None | |
| Lens | Lens Type | Lens Standard : 4-9 mm optical zoom lens |
| IR-CUT | Build-in IR CUT, No color cast | |
| Video | Image Compression | H.264 |
| Sensor | 1/4 Cmos 1MP | |
| Video Parameters |
Brightness, Contrast,Saturation,Exposure,sharpness, VerticalAnd Horizontal can be adjusted |
|
| Image Frame Rate | 25fps(50HZ), 25fps(60HZ) | |
| First Stream | 720P-(1280×720),(640×352) | |
| Second Stream | VGA-(640×352),(320×176) | |
| Audio | Compression format | None |
| Audio In | None | |
| Audio Out | None | |
| Night Vision | Lux | 0.4Lux |
| Night Visibility | 22 Φ5 IR LEDs, Night visibility up to 15 meters | |
| Pan/Tilt | Preset | Support 8 Preset Positions |
| Rotation Angle | Pan:355°, Tilt: 90° | |
| Rotation Speed | Pan: Speed Range 5-30°/ S; Tilt: Speed Range 5-50°/ S; | |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo ,Snapshot and Record uploaded to FTP | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol |
TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP， FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. |
|
| Access Protocol | Onvif 2.1, support verify authority( default closed) | |
| IP Mode | Dynamic IP address, static IP address, PPPOE | |
| Online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） |
|
| Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/Win7/Win8/ Mac OS. | |
| Browser | IE6.0, IE7.0, IE8.0, FireFox, Google or other standard browser | |
| AP Function | Support AP connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |
| Product Type | 4.2 inch Vanderproof PTZ ip camera/ Outdoor Use | |
| Color | White | |
| Power | DC5V 2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item: 220x128x230mm; Packaging: 260*195*278mm (LxWxH) | |
| Weight | N.W.: 1200g G.W.: 1585g(Note:Actual Weight Final) | |
| Accessories | Adaptor, WIFI antenna, CD (including User manual), Bracket, Screw | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty | |
