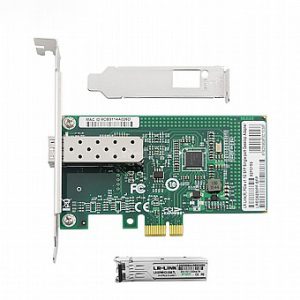

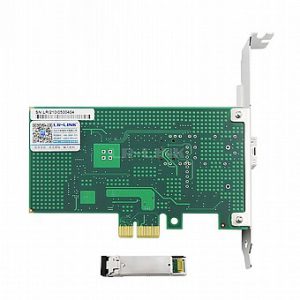

כרטיס רשת פנימי LR-LINK LREC6230PF-SFP + ג'יביק LR-LINK LRGP8512-X5ATL GBIC
LREC6230PF/ LREC6230PF-LX /LREC6230PF-BD /LREC6230PF-SFP/6230PF-LC is a PCIe x1 2.1 1Gbps Single Port Ethernet Fiber Desktop Adapter based on Intel I210 chipset, and is compatible with PCIe x4,x8,x16 slot. System I/O is no longer the bottleneck of network applications. In the networking connections, PCI Express dedicated input /output (I / O) bandwidth to ensure the network card to use the superior performance without taking up bus bandwidth.
The Desktop Adapter has high performance, high stability, high quality and very good compatibility, compatible with all brands of computers and fiber switches. This adapter is the ideal solution for deploying high-performance fiber-to-the-desktop (FTTD) applications and network security industry.
|
Controller |
Intel I210 |
| Transmission rate per port | 1GbE |
| Network Standard Physical Layer Interfaces | 1000Base-LX (1310nm) |
| 1000Base-SX (850nm) | |
| Jumbo Frame Support | Up to9.5 KB |
| Operating Temperature | -5°C to40 °C (23 °F to 104°F) |
| LED Indicators OPERATION | Link Orange,1000Mbps:Orange blinking |
| OperatingSystem Support | Windows Server2016/2016/R2/2012/2012R2/2008/2008 R2/ 2003 /2000/7/8/8.1/10 |
| WindowsCE/5.0 /Vista 32-bit (64-bit) | |
| NetWare NetWare 5.0/5.1/6.0/ DOS/ Novell ODI | |
| Linux 2.4 series kernel and 2.6.x/3.x /FreeBSD with the 9.x kernel | |
| OpenUNIX 8.0 (Caldera), UnixWare 7.x /Sun Solaris x86 |
The LRGP8512-X5ATL transceiver is a high performance,cost effective module that supports data-rate up to 1250Mbps.
The transmitter section and the receiver section work independently in the transceiver.The receiver section contains an InGaAs PIN photo diode,a transimpedance amplifier and a post amplifier (with working data rate up to 1250Mbps),functionally transmit received optical power to steady electrical data.
This transceiver meets the Small Form Pluggable (SFP) industry standard package utilizing an integral LC-Duplex optical interface connector.An enhanced Digital Diagnostic Monitoring Interface compliant with SFF-8472 has been incorporated into the transceiver. It allows real time access to the transceiver operating parameters such as transceiver temperature, laser bias current,transmitted optical power, received optical power and transceiver supply voltage by reading a built-in memory with I2C interface.
Applications
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Compliance
SFP MSA
SFF-8472
IEEE802.3z
RoHS
