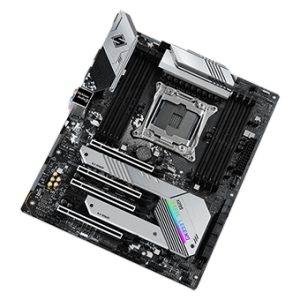

לוח אם X299 Steel Legend Motherboard
אתר יצרן asrock
ASRock USB 3.2 Gen2 |
Unique Feature |
– ASRock Type C USB 3.2 Gen2x2 Port (20 Gb/s) |
|
ASRock Super Alloy |
|
– XXL Aluminum Alloy Heatsink |
|
– Premium 60A Power Choke |
|
– 50A Dr.MOS |
|
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) |
|
– Matte Black PCB |
|
– High Density Glass Fabric PCB |
|
ASRock Steel Slots |
|
ASRock Full Coverage M.2 Heatsink |
|
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) |
|
ASRock POST Status Checker (PSC) |
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
ASRock Live Update & APP Shop |
|
– Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket (Cascade Lake-X, Skylake X Refresh and Skylake X) |
CPU |
– Digi Power design |
|
– 11 Power Phase design |
|
– Supports Intel® Turbo Boost Max Technology 3.0 |
|
– Intel® X299 |
Chipset |
– Quad Channel DDR4 Memory Technology |
Memory |
– 8 x DDR4 DIMM Slots |
|
– Supports DDR4 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory |
|
– Max. capacity of system memory: 256GB |
|
– Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|
– 15μ Gold Contact in DIMM Slots |
|
*Intel® X299 does not support 1Rx16 memory modules. |
|
The maximum memory frequency supported may vary by processor type. |
|
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
BIOS |
– ACPI 6.1 Compliant wake up events |
|
– SMBIOS 3.0 Support |
|
– CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCIO, VCCSA, Voltage Multi-adjustment |
|
– n/a |
Graphics |
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
Audio |
– Premium Blu-ray Audio support |
|
– Supports Surge Protection |
|
– Supports Purity Sound™ 4 |
|
– Nichicon Fine Gold Series Audio Caps |
|
– 120dB SNR DAC with Differential Amplifier |
|
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) |
|
– Pure Power-In |
|
– Direct Drive Technology |
|
– PCB isolate shielding |
|
– Impedance Sensing on Rear Out port |
|
– Individual PCB Layers for R/L Audio Channel |
|
– Gold Audio Jacks |
|
– 15μ Gold Audio Connector |
|
– Gigabit LAN 10/100/1000 Mb/s |
LAN |
– 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT |
|
– Supports Wake-On-LAN |
|
– Supports Lightning/ESD Protection |
|
– Supports Dual LAN with Teaming* |
|
– Supports Energy Efficient Ethernet 802.3az |
|
– Supports PXE |
|
*Teaming is supported on Windows® 10 RS2, RS3 and RS4. |
|
– 4 x PCI Express 3.0 x16 Slots* |
Slots |
– 1 x PCI Express 3.0 x1 Slot* |
|
– Supports AMD 3-Way CrossFireX™ and CrossFireX™ ** |
|
– Supports NVIDIA® 3-Way SLI™ and SLI™** |
|
– Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards** |
|
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
|
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) |
|
*If you install CPU with 48 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. |
|
If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. |
|
If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. |
|
**3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 48 lanes or 44 lanes. |
|
NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary. |
|
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* |
Storage |
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
|
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
|
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. |
|
If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|
**Supports Intel® Optane™ Technology M10 Series |
|
Supports PCIe RAID |
|
Supports NVMe SSD as boot disks |
|
– 1 x Virtual RAID On CPU Header |
Connector |
– 1 x SPI TPM Header |
|
– 1 x Power LED and Speaker Header |
|
– 2 x RGB LED Headers* |
|
– 2 x Addressable LED Headers** |
|
– 1 x CPU Fan Connector (4-pin)*** |
|
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
|
– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
|
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
|
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
|
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector) |
|
– 1 x Thunderbolt™ AIC Connector (5-pin)****** |
|
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
|
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
– 1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 Hub) |
|
*Supports in total up to 12V/3A, 36W LED Strip |
|
**Support in total up to 5V/3A, 15W LED Strip |
|
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
|
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
CPU_FAN2/WP, CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. |
|
******The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type). |
|
– 2 x Antenna Ports (on I/O Panel Shield) |

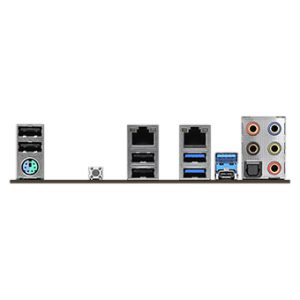

Rear Panel I/O |
– 1 x PS/2 Mouse/Keyboard Port |
|
– 1 x Optical SPDIF Out Port |
|
– 4 x USB 2.0 Ports (Supports ESD Protection) |
|
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection) |
|
– 3 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) |
|
– 1 x Clear CMOS Button |
|
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
Software |
Software and UEFI |
– ASRock Motherboard Utility (A-Tuning) |
|
– ASRock Polychrome SYNC |
|
– ASRock XFast LAN |
|
UEFI |
|
– ASRock EZ Mode |
|
– ASRock Full HD UEFI |
|
– ASRock My Favorites in UEFI |
|
– ASRock Instant Flash |
|
– ASRock Internet Flash |
|
– ASRock Easy RAID Installer |
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
|
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Support CD |
– Quick Installation Guide, Support CD, I/O Shield |
Accessories |
– 4 x SATA Data Cables |
|
– 1 x ASRock SLI_HB_Bridge_2S Card |
|
– 3 x Screws for M.2 Sockets |
|
– 2 x Standoffs for M.2 Sockets |
|
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
Hardware Monitor |
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA |
|
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
Form Factor |
